HT4-4000T Takeout Robot

Description

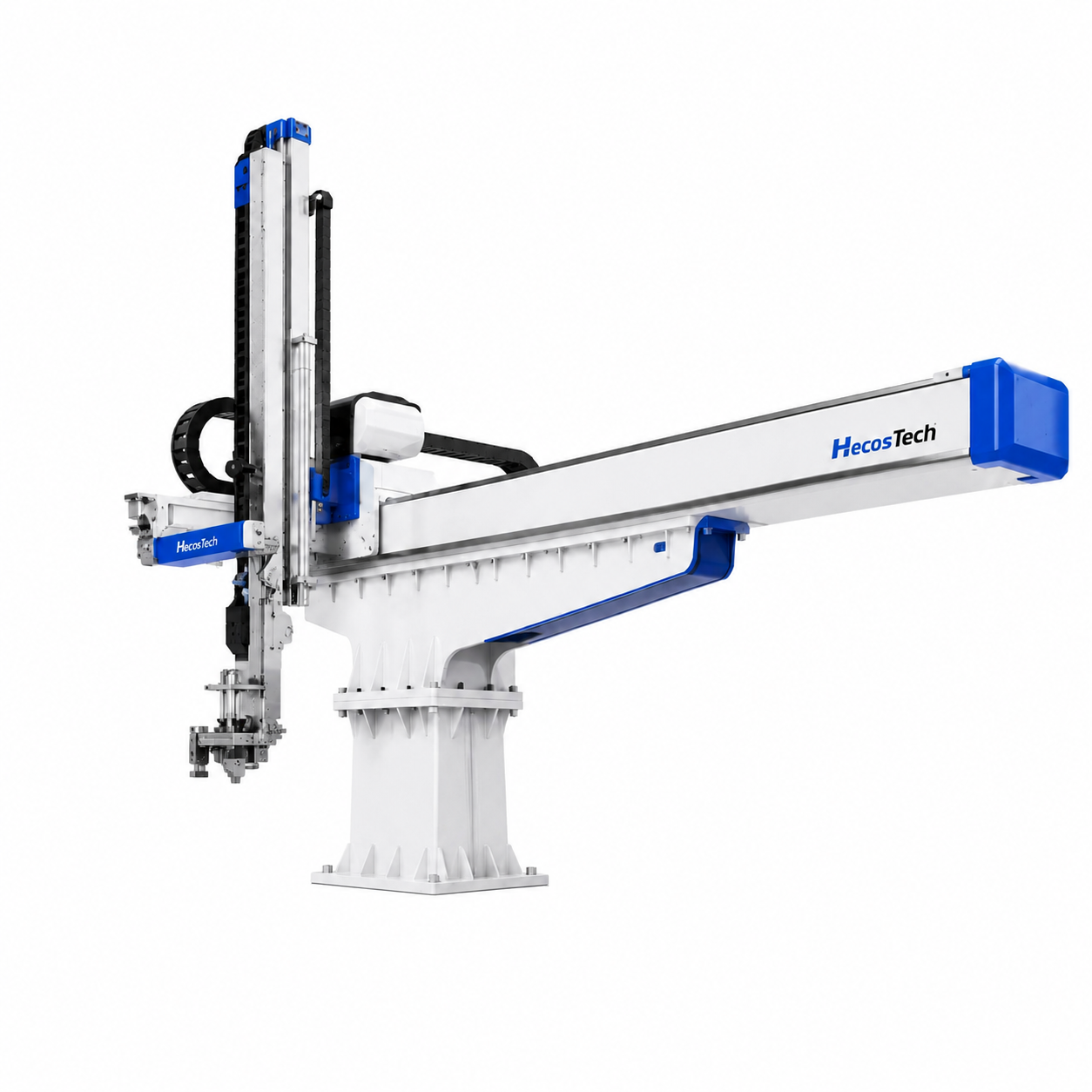

HT4-4000T Takeout Robot Overview

HT4-4000T takeout robot is a 4-axis servo automation system developed for automatic removal and handling of injection molded products. The robot coordinates mold entry, product gripping, mold exit, transverse transfer, positioning, and downstream placement according to a programmed production sequence. Its 4-axis servo configuration provides additional controlled motion for applications requiring more flexible product handling after demolding. The final robot configuration can be adapted according to the molded product, mold structure, takeout direction, end-of-arm tooling, installation conditions, and production workflow.

4-Axis Servo Takeout and Positioning System

The HT4-4000T takeout robot uses 4-axis servo control to coordinate mold entry, molded-part removal, transverse movement, positioning, and placement. Servo-driven control allows the robot to execute programmed movements with repeatable positioning throughout the injection molding cycle. Customized end-of-arm tooling can use gripping, vacuum suction, or combined handling methods according to the molded product. The tooling structure and robot sequence are configured according to product dimensions, weight, gripping position, mold design, cavity arrangement, demolding conditions, placement requirements, and target production cycle.

Applications for Injection Molded Part Takeout and Handling

The HT4-4000T takeout robot can be configured for injection molded products requiring automatic removal, controlled transfer, positioning, and downstream placement. Applications can include automotive plastic parts, household products, appliance components, logistics products, industrial molded parts, plastic containers, and other injection molded components. The 4-axis configuration provides additional flexibility when the production process requires positioning or handling beyond a basic takeout and transverse transfer sequence. Final robot selection should consider product dimensions, weight, mold structure, cavity quantity, gripping position, demolding conditions, placement requirements, and downstream automation.

Injection Molding Machine Integration and Automation Matching

The HT4-4000T takeout robot is designed for integration with injection molding machines as part of an automated production cell. Project matching should evaluate tie-bar spacing, platen dimensions, mold opening stroke, ejector conditions, robot mounting position, machine interface signals, available installation space, safety guarding, tooling load, and required production cycle. The 4-axis motion sequence and end-of-arm tooling should be engineered according to the actual injection molding machine, mold configuration, product geometry, takeout direction, placement requirements, and downstream process before manufacturing.

EUROMAP 67 provides a reference for the electrical interface between an injection molding machine and a handling device or robot.

HecosTech Custom 4-Axis Takeout Automation Solutions

Each HT4-4000T takeout robot system is configured according to the customer’s molded product, mold, injection molding machine, and production workflow. HecosTech can customize the 4-axis motion sequence, end-of-arm tooling, gripping or suction method, product takeout sequence, positioning process, conveyor connection, stacking or placement method, safety guarding, and downstream automation layout. To prepare an accurate technical proposal, customers should provide product drawings or samples, product dimensions and weight, mold drawings, cavity quantity, injection molding machine information, takeout direction, placement requirements, target cycle time, factory layout, and required downstream operations.

Contact HecosTech to receive a project-specific 4-axis takeout automation proposal.

Frequently Asked Questions About the HT4-4000T Takeout Robot

1. What does the 4-axis configuration of the HT4-4000T takeout robot mean?

The HT4-4000T takeout robot uses four servo-controlled axes to coordinate mold entry, product removal, transfer, positioning, and placement. The 4-axis configuration provides additional controlled motion for applications requiring more flexible handling after product takeout.

2. What products can the HT4-4000T takeout robot handle?

The HT4-4000T takeout robot can be configured for different injection molded plastic products. Final suitability depends on product dimensions, weight, gripping position, mold structure, cavity arrangement, demolding conditions, positioning requirements, and downstream handling process.

3. What is the advantage of the HT4-4000T 4-axis takeout robot?

The 4-axis configuration provides additional controlled motion for product positioning and handling after takeout. This supports automation processes requiring more flexible transfer or placement than a basic 3-axis takeout sequence. The actual benefit depends on the product geometry, mold layout, tooling, and downstream automation requirements.

4. Can the HT4-4000T use customized end-of-arm tooling?

Yes. The HT4-4000T takeout robot can use customized gripping, vacuum suction, or combined end-of-arm tooling according to product geometry, surface condition, takeout position, weight, and handling requirements.

5. Can the HT4-4000T connect to downstream automation equipment?

Yes. The HT4-4000T takeout robot can be integrated with conveyors, inspection stations, trimming equipment, stacking systems, product placement stations, and other downstream automation according to the production process.

6. What information is required for an HT4-4000T technical proposal?

Customers should provide product drawings or samples, product dimensions and weight, mold drawings, cavity quantity, injection molding machine information, takeout direction, placement requirements, target cycle time, factory layout, and required downstream operations.
