In Mold Labeling Plastic Labels

In Mold Labeling Plastic Labels in a Packaging Project

In mold labeling plastic labels connect the packaging design with the molding process. The printed label is placed in the mold before the part is formed, so the discussion involves both the desired appearance and the equipment that handles the label. HecosTech’s label-solution scope considers label dimensions, artwork, container shape and the related production requirements together.

A label enquiry may begin with a finished-package sample, a container drawing or artwork that is still being developed. Identify that starting point and the supplied items being requested. For label supply and customization, see the custom in-mold labeling label product. The package, mold and automation references provide the context for reviewing the required label.

Connect Flat Artwork With the Decorated Package

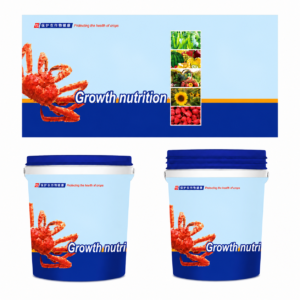

A flat artwork view and a finished-package view answer different questions. The flat view shows the graphic layout and its boundary. The package view shows the intended position and orientation after molding. Use the same package reference in both views, and identify whether the illustration is a released design or an appearance concept that still needs review.

A front view alone may not show the intended coverage around the rest of a container. Identify the decorated faces and any areas that should remain undecorated. Keep the container drawing available alongside the artwork so that the printed design is not used as a substitute for product geometry. This is especially useful when similar branding is planned for several package sizes.

Separate Container-Body and Lid Requirements

Cups, tubs, food containers and buckets can have different decorated components. The body and its lid should remain separately identified even when they share the same brand design. Confirm whether the enquiry covers one component or both, and connect each label reference with the corresponding component. A label proposal for the body does not automatically include the closure.

For a packaging family, list the starting format and the planned alternatives. Distinguish a graphic change on an unchanged component from a different shape or size. Similar artwork does not establish that the same label outline or handling configuration is suitable for both products. Keep the relationship between each label and each package explicit.

Match the Label With the Mold and Handling Arrangement

The Mold Defines the Placement Context

In mold labeling plastic labels are reviewed with the actual molded component and the space available for placement. The intended label position should be connected with the mold reference, not described only as a general visual preference. Where tooling already exists, identify it and distinguish an established production arrangement from a proposed change that still needs a compatibility review.

The IML mold solution explains the related packaging and tooling discussion. That connection does not mean that every existing mold is ready for every label. The relevant geometry, label position and access need to be considered for the project before the label and tooling requirements are treated as final.

The Robot Handles a Physical Label, Not Only a Graphic

The label has to be presented, picked up and placed in the intended orientation. Tell HecosTech whether the robot is already selected and whether the proposed labels are for an existing setup or a new project. The label’s appearance is one part of the review; the handling arrangement is another. A visually approved design is not, by itself, confirmation of compatibility with the equipment.

The in mold labeling robot range provides the related equipment reference. If a handling concern is being discussed, identify the current package and label revision so that the equipment review and the artwork discussion refer to the same proposed configuration. Separate the label requirement from any additional robot equipment that may be included in the project.

Keep Artwork Decisions Separate From Production Approval

An artwork discussion may establish the graphics, text and intended appearance while leaving other project decisions open. Record what has actually been approved and which reference was reviewed. Do not treat an email approving a graphic preview as approval of an unreviewed container revision, an unspecified label material or an unconfirmed machine configuration.

The label artwork and proof-approval article covers the detailed file-handover workflow. Keep the approved artwork, component reference and proposed supply scope connected as the enquiry progresses. When a file changes, identify which prior revision it replaces and whether the change affects the label outline, the printed content or another part of the packaging requirement.

Identify the Type of Change

For an existing package, describe whether the enquiry concerns new graphics, a new label outline or a new container. These are different starting points. A graphics-only change may leave the component reference unchanged, while a revised package shape needs the label requirement to be reconsidered against that geometry. Any proposed reuse of tooling or handling components remains subject to the actual project review.

For a replacement-label enquiry, identify the existing reference and explain which aspect should remain the same. If a sample is available, state whether it represents the current production item or the intended result. This avoids confusing a reference sample with an approved specification and gives the label discussion a clear starting point.

State Application Requirements Without Assuming Compliance

The intended use of a package should be identified separately from its printed design. Food packaging, household packaging and other applications may have different material or approval requirements. Describe the requirement that needs to be assessed. A product photograph, a material name or the use of IML is not a substitute for the documentation applicable to the finished packaging project.

The same distinction applies to environmental claims. Do not infer a recycling outcome for the complete package from the label image or the general process name. Where a specific claim is required, identify the package construction and the evidence needed to support it. The project discussion should keep unverified claims separate from confirmed supply details.

Review Label Coverage Against the Container Geometry

Identify the Decoration Boundary

A label requirement should show where the decoration starts and ends on the package. A drawing can identify the intended boundary relative to the rim, base and other visible features. The purpose is to make the coverage understandable, not to assume that the artwork can extend across every part of the molded component. Confirm the proposed outline against the container and tooling references.

Where a label wraps around a container, show the intended meeting area as well as the main display face. Where separate labels decorate different faces, identify each face and its orientation. Do not leave the arrangement to be inferred from a single photograph. A marked package view can help distinguish an intentional undecorated area from a missing part of the artwork proposal.

Keep Important Graphics Connected With Their Position

Identify the principal display face and how it should appear when the package is viewed in its normal orientation. Logos, readable text and other important graphic elements need a defined relationship with the container. A design that appears correctly oriented in a flat file can still leave ambiguity about its intended position on the molded package if that relationship is not shown.

For a lid, indicate the intended viewing direction independently from the body graphic. When a body and lid are presented together, show the desired appearance without assuming that their orientation is controlled in the same way. Any alignment requirement between separate components needs to be stated for review. The illustration should distinguish the requested appearance from a production capability that has already been confirmed.

Relate Label Presentation to the Existing Production Setup

Clarify What the Robot Will Receive

Printed artwork does not describe the complete handling input. The equipment discussion also needs the intended physical label reference and how labels will be presented to the robot. If a label magazine or handling arrangement already exists, identify it. If the project is new, keep that selection open for the equipment review instead of assuming compatibility from the package photograph.

For in mold labeling plastic labels intended to replace an existing item, separate unchanged requirements from proposed differences. A familiar graphic does not establish that the new label has the same outline or handling characteristics. State which physical reference the new item is intended to match, and identify any difference that needs to be evaluated with the existing tooling and automation.

Describe a Placement Concern Using the Same References

If the enquiry involves inconsistent appearance or placement, distinguish what is visible on the finished package from the suspected cause. Identify the affected face, the label reference and the container reference. A photograph can show the observed result, but it does not by itself determine whether the cause concerns the label, mold, handling or another part of the production process.

Use the discussion to define the review scope before treating a replacement label as the solution. For example, a change to printed graphics and a change to the label outline address different requirements. Record the requested result and let the relevant label, tooling and equipment information guide the compatibility assessment. No corrective outcome should be assumed before that assessment is complete.

Compare Packaging Variants Without Losing the Starting Configuration

When several package versions are being considered, keep one clearly identified starting configuration. Connect its container drawing, label outline, artwork reference and relevant equipment information. Then describe each alternative in relation to that starting point. This makes it possible to discuss a family of packages without treating every item as identical or confusing one version’s approval with another’s.

A different printed language on the same proposed label outline is not the same change as a larger container with a revised decoration area. Likewise, adding a decorated lid introduces a component that may not have been part of the original scope. Explain the physical and graphic differences separately so that the quotation discussion reflects the actual requirement.

For each alternative, identify whether it is required for the initial project or is only being considered for later. Include any proposed reuse of the existing mold or robot as a question to be checked, not as an established fact. The resulting scope can then distinguish label customization from changes that also require a tooling or automation discussion.

Request an IML Label Solution for the Defined Scope

An enquiry for in mold labeling plastic labels should identify the package, the intended label coverage and the present project stage. Mention whether drawings, artwork, samples, mold information or equipment references are available. Identify which items are already confirmed and which are still being developed. Request a quotation for the required label scope without assuming that a complete production line is included.

Where the requirement extends beyond labels, the IML automation system page covers the connected equipment discussion. Use the existing enquiry form to explain whether the request is label-only, label and tooling coordination, or a wider automation project. HecosTech can then discuss the defined requirement using the available product and production references.
